Example: Plot Single Particle

#!/usr/bin/env python3

import time

import numpy as np

from neat.fields import StellnaQS
from neat.tracing import ChargedParticle, ParticleOrbit

"""
Trace the orbit of a single particle in a
quasisymmetric stellarator
"""

# Initialize an alpha particle at a radius = r_initial
r_initial = 0.12  # meters
theta_initial = np.pi / 2  # initial poloidal angle
phi_initial = np.pi  # initial poloidal angle
B0 = 6  # Tesla, magnetic field on-axis
energy = 3.52e6  # electron-volt
charge = 2  # times charge of proton
mass = 4  # times mass of proton
Lambda = 0.99  # = mu * B0 / energy
vpp_sign = -1  # initial sign of the parallel velocity, +1 or -1
nsamples = 800  # resolution in time
tfinal = 6e-5  # seconds
constant_b20 = False  # use a constant B20 (mean value) or the real function

g_field = StellnaQS.from_paper(1, B0=B0)

g_particle = ChargedParticle(
    r_initial=r_initial,
    theta_initial=theta_initial,
    phi_initial=phi_initial,
    energy=energy,
    Lambda=Lambda,
    charge=charge,
    mass=mass,
    vpp_sign=vpp_sign,
)

print("Starting particle tracer")
start_time = time.time()
g_orbit = ParticleOrbit(
    g_particle, g_field, nsamples=nsamples, tfinal=tfinal, constant_b20=constant_b20
)
total_time = time.time() - start_time
print(f"Finished in {total_time}s")

print("Creating B contour plot")
g_orbit.plot_orbit_contourB(show=False)

print("Creating parameter plot")
g_orbit.plot(show=False)

print("Creating 2D plot")
g_orbit.plot_orbit(show=False)

# print("Creating 3D plot")
# g_orbit.plot_orbit_3d(show=True)

print("Creating animation plot")
g_orbit.plot_animation(show=True, save_movie=False)

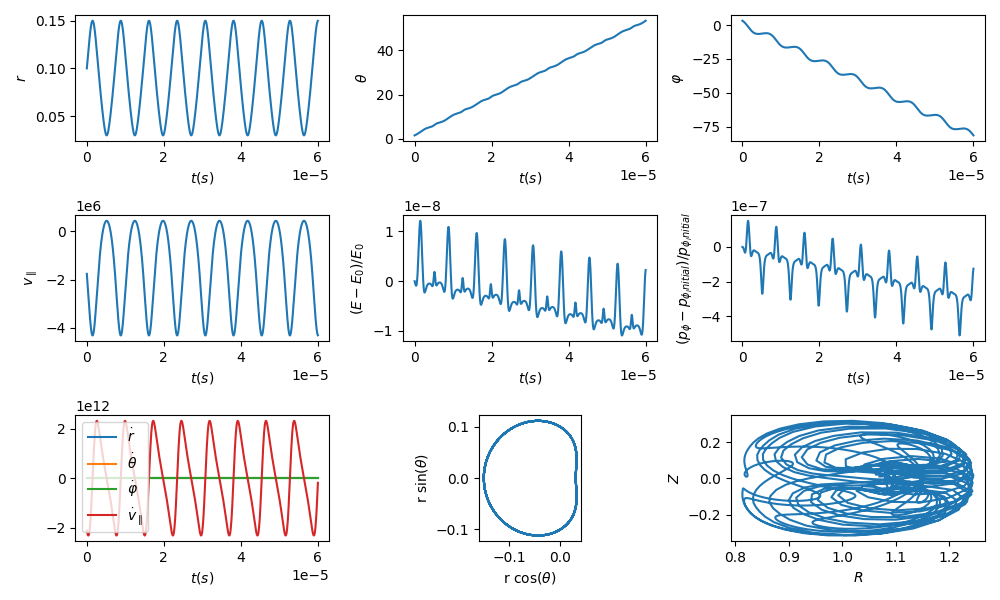

Figure 1: Parameters of a particle orbit calculated with the example in examples/plot_single_orbit_qs.py

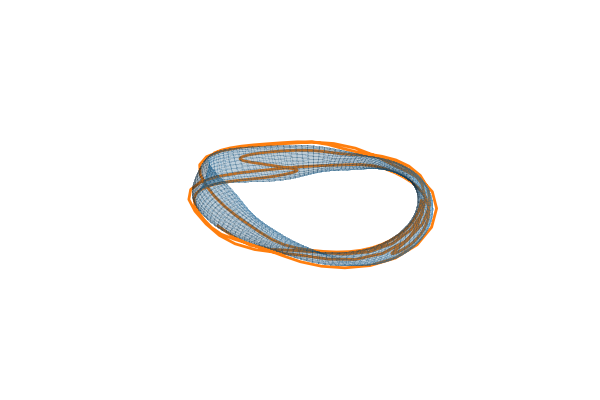

Figure 2: Particle orbits in 3D calculated with the example in examples/plot_single_orbit_qs.py

Figure 3: Example of an animation with the orbit calculated with the example in examples/plot_single_orbit_qs.py
